Building a high powered engine for road race, drag race, or full out competition racing? JE Pistons for your 1.8T 20V engine offer the ultimate in strength and reliability in a forged piston for your VW/Audi race engine.

LEADING PISTON FEATURES

• Ultra-high performance 2.0T FSI forged piston set
• Optional bore sizing
• Optional compression ratios
• Includes JE Pro Seal piston rings
• Includes wrist pins and pin locks
• No dish deburring or preparation needed
• Individually prepared inspection report of dimensional conformity
• Each piston individually serialized for complete traceability
• 23-point post-production inspection conducted by certified personnel
• Tighter tolerances on 14 critical areas of the piston

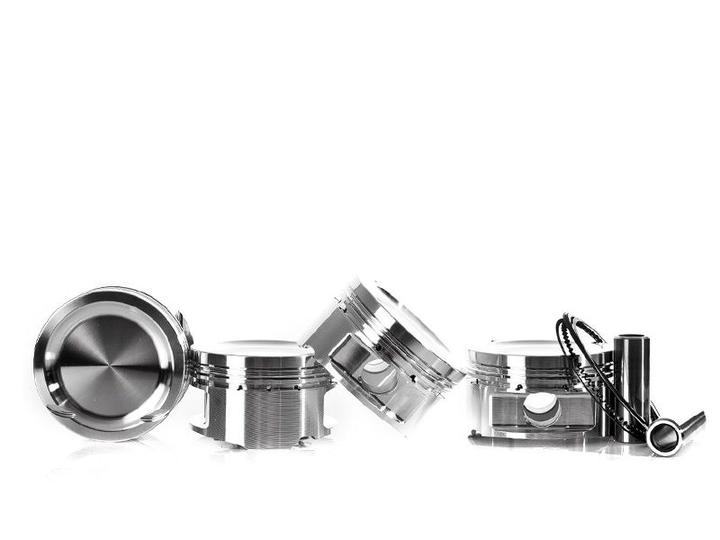

INCLUDED IN PISTON SET

• 4X JE forged FSI pistons
• 4X JE Pro Seal piston rings sets
• 4X JE straight wall carbon steel wrist pins
• 8X JE wrist pin wire locks

CHOOSING YOUR COMPRESSION RATIO

JE piston sets for the VW/Audi 2.0T FSI engine are offered in a variety of compression ratios. Lower compression pistons will allow higher boost levels on lower octane ratings with less chance of knock and cylinder detonation than higher compression ratio pistons. Lower compression will sacrifice out of boost power, spool time, and power/torque per pound of boost. Choose your compression ratio accordingly. For most engine builds we recommend using a higher compression ratio piston. Speak with your engine tuner about the fuel and boost pressures used to determine the best compression for your engine.

CHOOSING YOUR BORE SIZE

JE offers your choice of bore size to suit your build. You have the option of stock bore sizing (82.5mm) or +.5m to +1mm oversized bores. Overbore pistons require additional machine work including a cylinder bore and hone. This work must be performed by a machine shop. For most performance engine builds, we recommend overboring the engine block when installing aftermarket pistons. This additional work ensures a proper piston to wall clearance and in most cases results in stronger compression, longer piston life, increased ring life, and quieter piston operation.

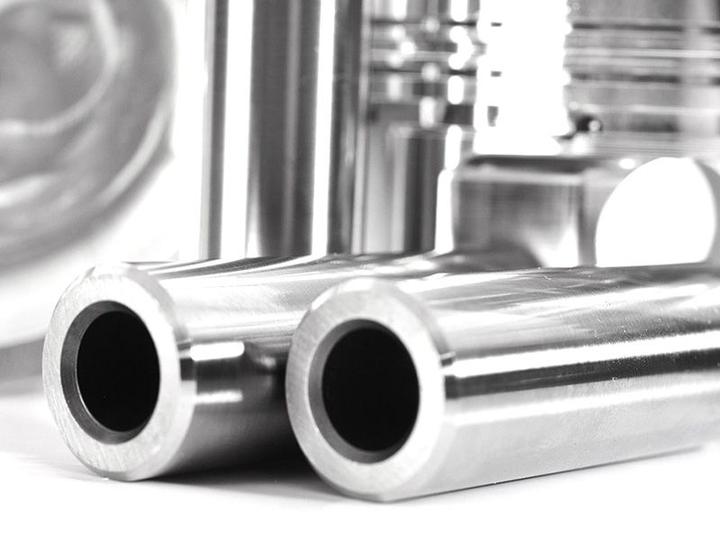

OPTIONAL 180 “Tool Steel” WRIST PINS

JE 180 Tool Steel wrist pins are through-hardened 52100 high-carbon bearing steel for extreme forced induction or nitrous-fed racing applications and offer high-strength with low ductility. Employing the latest in technology, each pin is checked to ensure dimensional measurements and roundness. Recommended upgrade for all engines exceeding 125HP per cylinder. SOLD SEPARATELY

MEASUREMENTS & SPECIFICATIONS

Stock bore size:
Bore: 82.5mm
Stroke: 92.8mm
Rod size: 144X20
Dome CC (9.17:1): -11.5
Dome CC (10.38:1): -3.7
Dome CC (10.98:1): -0.5
Weight (9.17:1): 290 grams
Weight (10.38:1): 297 grams
Weight (10.98:1): 301 grams

+.5mm bore size:
Bore: 83mm
Stroke: 92.8mm
Rod size: 144X20
Dome CC (9.04:1): -12.2
Dome CC (10.27:1): -4.3
Dome CC (10.98:1): -0.5
Weight (9.04:1): 294 grams
Weight (10.27:1): 301 grams
Weight (10.98:1): 309 grams

+1mm bore size:
Bore: 83.5mm
Stroke: 92.8mm
Rod size: 144X20
Dome CC (8.99:1): -12.9
Dome CC (10.17:1): -4.9
Weight (8.99:1): 298 grams
Weight (10.17:1): 305 grams
Weight (10.98:1): 313 grams

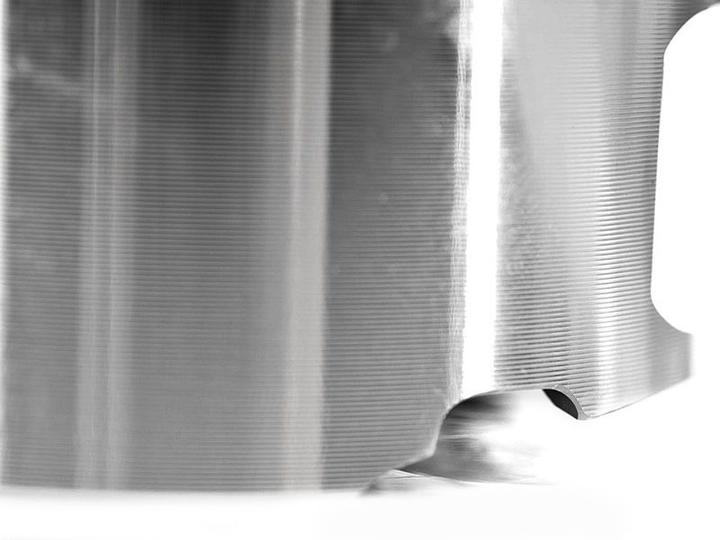

MANUFACTURING DETAILS

Forged from 2618 T6 aluminum
Engineered for extreme operating environments found in professional motorsport competition, JE manufactures this light yet strong piston from high tensile strength 2618 T6 aluminum. This high-performance alloy is suited for use with high compression ratios, high boost levels, and high octane usage tolerating acceleration forces of more than 8000 G’s and directional changes exceeding 200 times a second while minimizing weight. This reliable forging is the ultra-high performance choice when building competition or very high powered boosted engine exceeding street power levels.

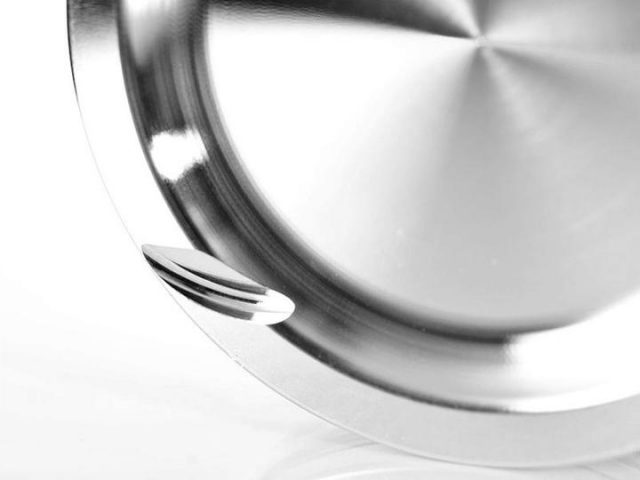

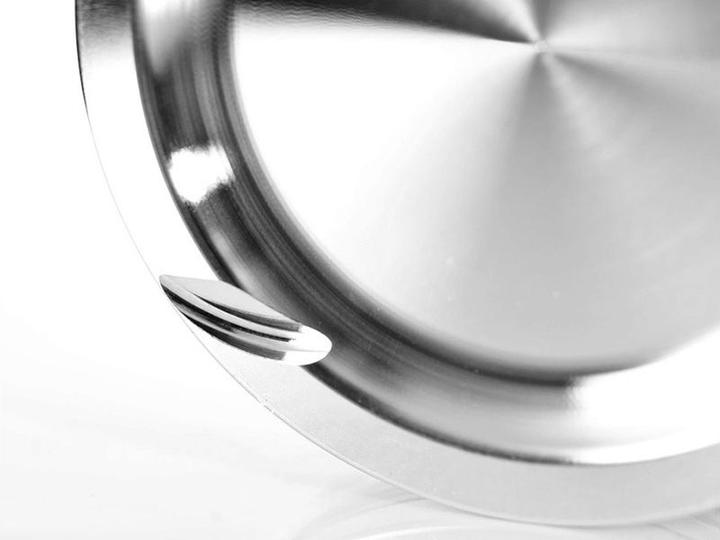

Optimized dish & dome design
The piston dish and dome have been individually designed to the combustion chamber of each individual application. Special care has been taken to provide properly placed valve reliefs as needed and feature smooth flowing radii across the surface for excellent flame travel. Designed and verified in JE’s dedicated Critical Manufacturing Cell, providing reliable compression ratios and combustion characteristics.

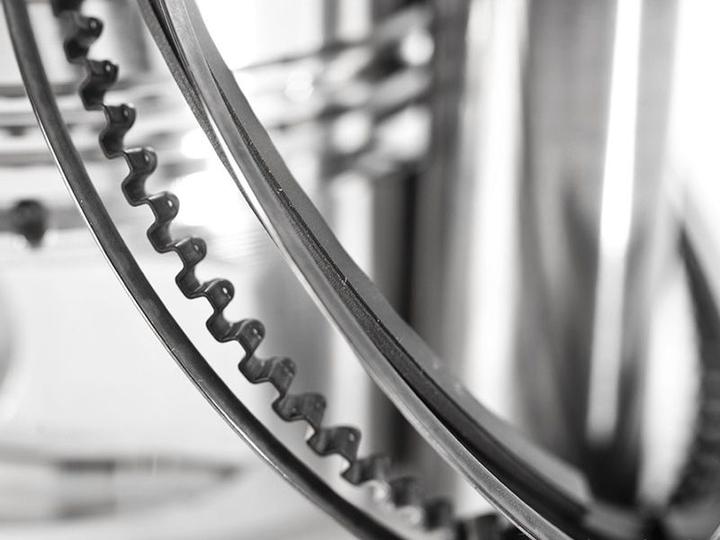

JE Pro Seal piston rings
Every JE piston set includes a complete set of performance matching JE Pro Seal Piston Rings. JE Pro Seal rings are the result of over 60 years of experience in manufacturing racing piston technology such as NASCAR, ALMS, NHRA, and AMA. Pro Seal Ring features barrel-faced top rings made with premium ductile iron, plasma-moly inlays on the ring face combining nickel, chrome, and other trace elements. The second ring sets are taper-faced with a reverse torsional design and finished with a phosphate coating. These high-technology designs reduce friction, lower wear, improve ring seal, and extending ring life.

World class manufacturing and quality control
Meeting the extreme demands of today’s ultra-performing race teams, JE Pistons are engineered, manufactured, and verified using during a Critical Process Program unique to JE. All critical surfaces are machined in a dedicated manufacturing cell resulting in tighter tolerances on 14 critical areas. 23-point quality inspection in an environmentally controlled lab maintained at a constant 68 degrees with 40% relative humidity. This ensures consistent and exact measurements and guarantees dimensional conformity. Each piston is serialized and tracked, you can rest assured your piston set is ready to use right out of the box!

VEHICLE FITMENT

• Audi – A4 2005-2008 (B7) 2.0T FSI EA113 engines
• Audi – A6 2005-2011 (C6) 2.0T FSI EA113 engines
• Audi – A6 Allroad 2005-2011 (C6) 2.0T FSI EA113 engines
• Audi – TT 2008-2015 (MK2 – 8J) 2.0T FSI EA113 engines*
• Audi – TTS 2008-2015 (MK2 – 8J) 2.0T FSI EA113 engines
• Audi – A3 2006-2013 (MK2 – 8P) 2.0T FSI EA113 engines*
• Audi – S3 2006-2013 (MK2 – 8P) 2.0T FSI EA113 engines
• VW – GTI 2006-2009 (MK5) 2.0T FSI EA113 engines*
• VW – Golf R 2012-2012 (MK6) 2.0T FSI EA113 engines
• VW – Jetta & Jetta GLI 2006-2010 (MK5) 2.0T FSI EA113 engines*
• VW – Passat 2006-2010 (B6) 2.0T FSI EA113 engines*
• VW – EOS 2006-2015 (1F7) 2.0T FSI EA113 engines*

*JE Pistons for 2.0T FSI only fits VW Audi engines with the 2.0L 8V EA113 (timing belt driven) engines. Some chassis listed above may be equipped with a 2.0T TSI EA888 Gen1/2 (timing chain driven) engine. These piston sets are not compatible with TSI engines, verify whether you have a timing belt or timing chain driven engine before purchasing.
