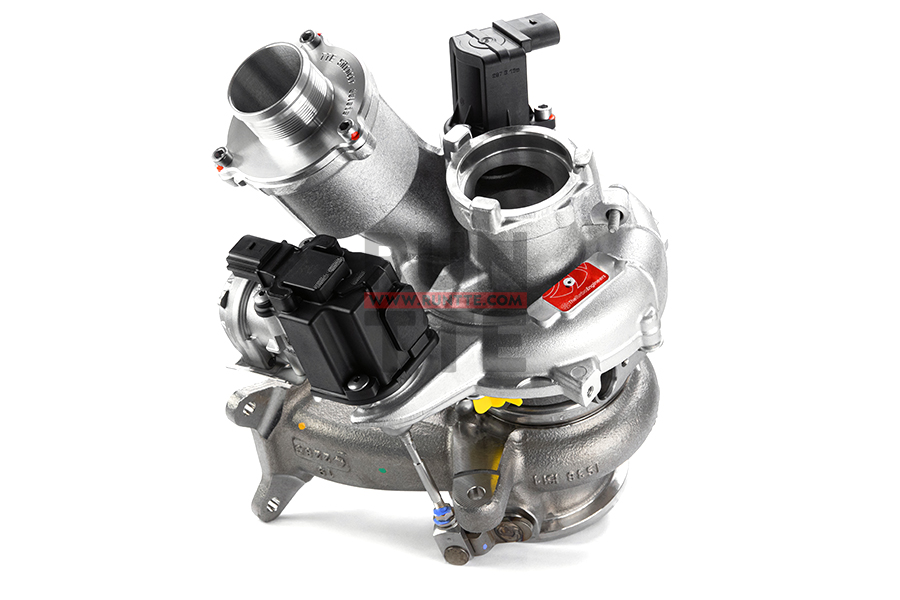

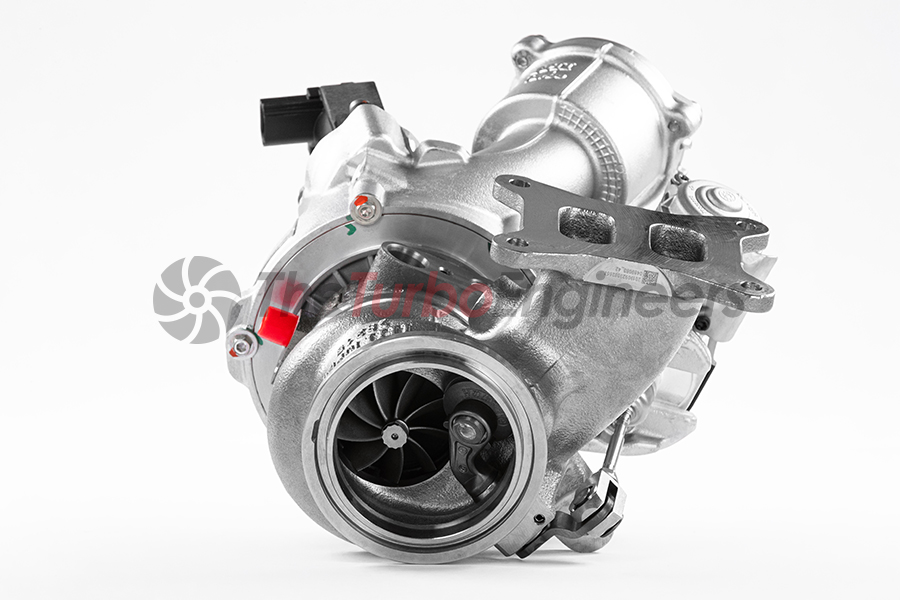

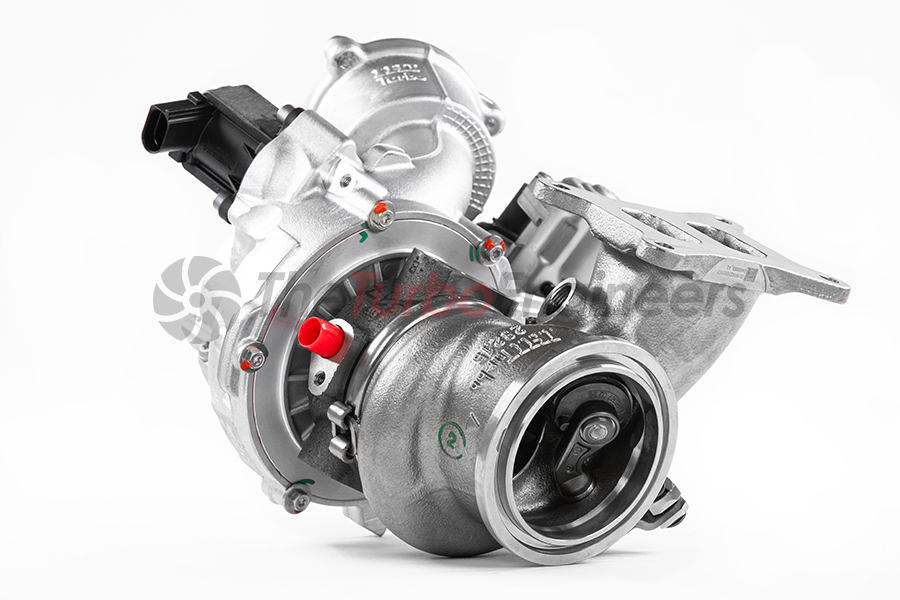

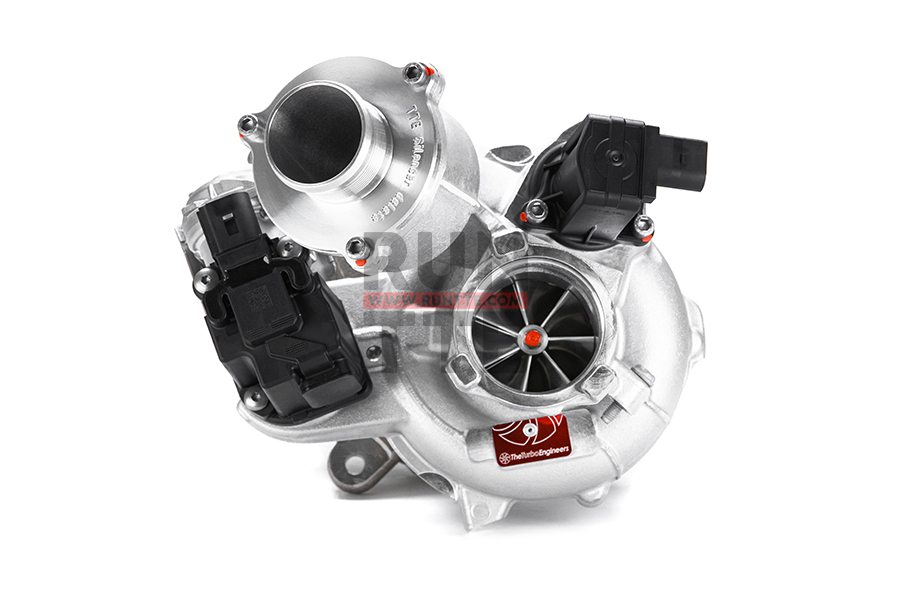

TTE555 is our very latest hybrid performance upgrade turbocharger based on the Original IHI IS38 turbocharger for the 3rd generation VAG 2.0TSI. Stage 3+ power, with good spool and response. We feel this is the strongest performing hybrid IS38 available on offer.
Vehicle Compatibility
- AUDI S3 8V
- AUDI S3 8V FACELIFT
- SKODA OCTAVIA VRS
- VOLKSWAGEN MK7 GOLF GTI
- VOLKSWAGEN MK7 GOLF GTI CLUBSPORT
- VOLKSWAGEN MK7 GOLF R
- VOLKSWAGEN MK7.5 GOLF GTI
- VOLKSWAGEN MK7.5 GOLF R
- VOLKSWAGEN TIGUAN
Engineered & Enhanced EA888 Gen 3 - IS38

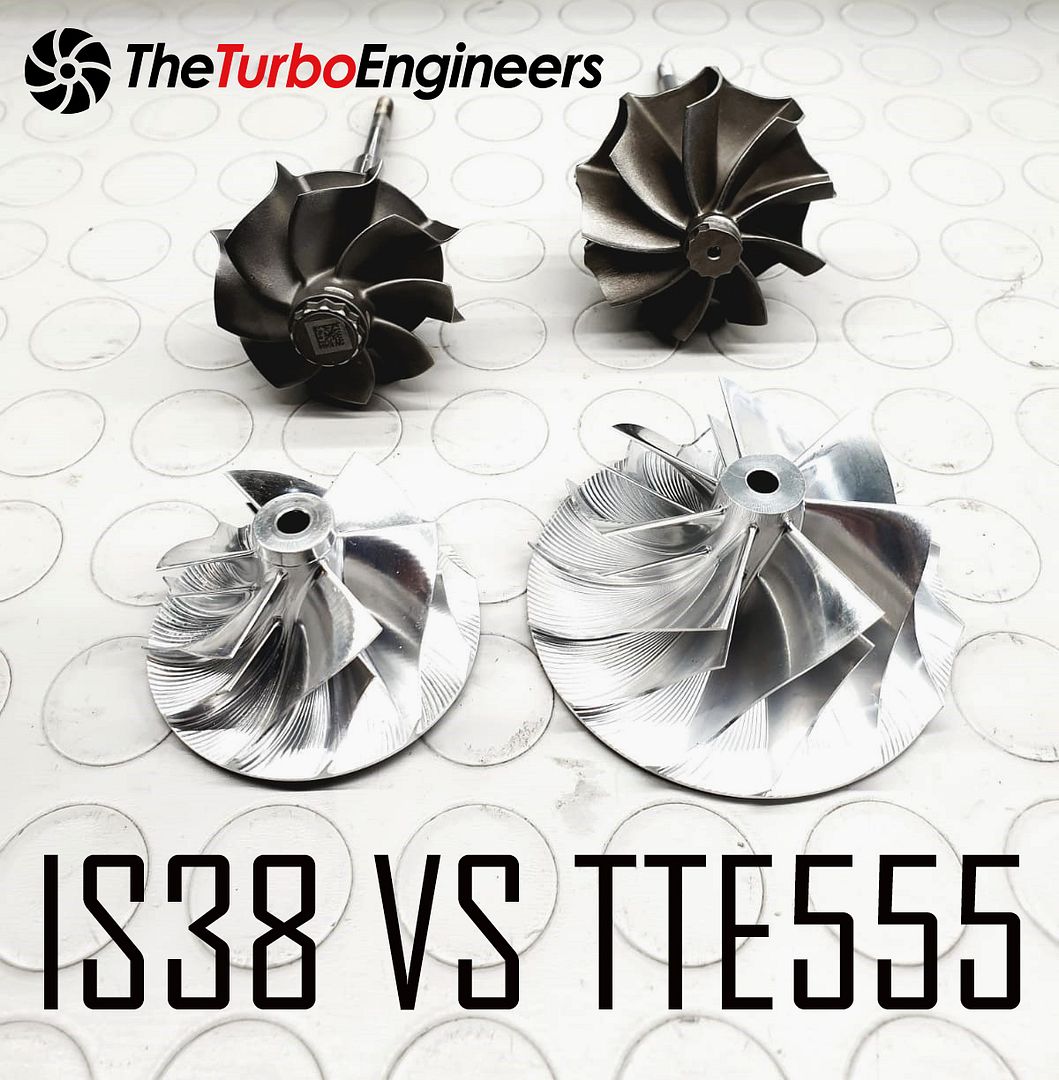

To construct a TTE555 we change the original compressor and employ a far larger and more efficient billet wheel with extended tip technology and mill the compressor cover to the optimum gap to match the new compressor profile. We replace the original IS38 turbine and CNC mill the turbine housing to install a larger lightweight 9 blade turbine for greater gas flow. We also replace the original thrust bearing for TTE upgrade 360 deg that is made in-house.
We also fit our TTE CNC Billet silencer delete, removing any restriction and its function as a noise-canceling device, and so improving the flow & response and enhancing the sound.
The 9 Blade TTE turbine is a special turbine designed by TheTurboEngineers. Advantages are greater gas flow, reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost levels. This turbine is extremely light in mass so giving a reduced moment of inertia, meaning fast spool up for the size.
Equilibrium
Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled, and then the CHRA are dynamically balanced, but this time depending on the application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.
Product Highlights:
- Original Genuine IS38 IHI turbocharger as the base part
- Original Genuine actuator
- Original Genuine diverter valve
- TTE Billet Milled compressor 6+6 Blade
- TTE High-Flow Low- Mass 9 Blade Turbine
- TTE CNC Billet silencer delete
- Reinforced bearing pack
- Plug and Play installation as IS38 turbocharger
- 555 PS+ proven
- Proven TheTurboEngineers quality
- Single parts finely balanced then components assembled and core high-speed VSR balanced
- Supplied with a balance test result document
- Made in Germany
